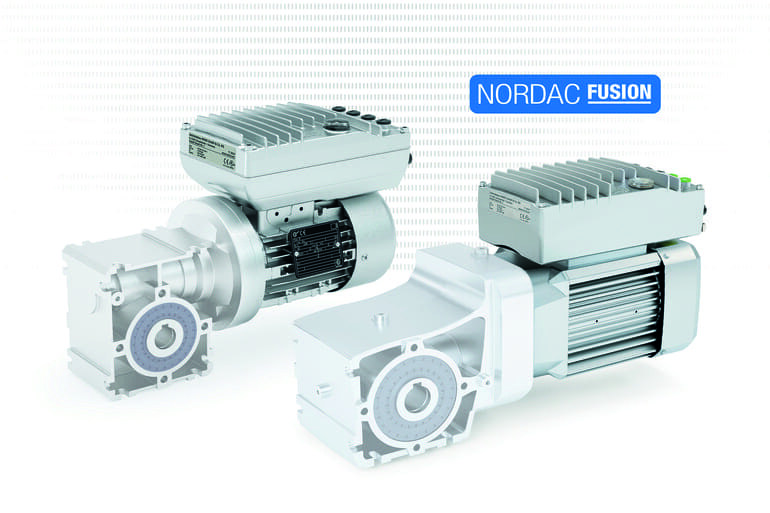

NORD DRIVESYSTEMS has introduced NORDAC FUSION, a compact drive system that integrates a motor and inverter into a single coordinated unit. The new solution is designed to deliver high power density while reducing installation space and simplifying system integration.
The ready-to-use system is aimed at applications where space, installation effort and reliable drive performance are critical. Its decentralized design allows direct mounting on the machine, helping reduce wiring requirements and eliminating the need for centralized control cabinets in suitable applications.
For logistics projects with a high level of automation, this means: less engineering efforts per drive axle, faster commissioning and consistently high drive quality – from the first conveying point to the last transfer station. NORDAC FUSION’s decentralized design furthermore allows for direct mounting on the respective unit. Centralized control cabinets are thus no longer required and wiring efforts are considerably reduced.
NORDAC FUSION – Various combinations
NORDAC FUSION combines asynchronous motors (IE3) and permanent magnet synchronous motors (IE5+) in ventilated and unventilated versions with a decentralized NORDAC ON frequency inverter. The optimized motor/inverter combinations cover a power range from 0.31 to 3.7 kW. They feature consistent safety and communication properties, are suitable for worldwide use, and can be ideally complemented with a gear unit from the manufacturer’s modular product range.
The decentralized frequency inverters are characterized by their compact design, full plug-in capability and high reliability. Special features include the integrated PLC and their multi-protocol Ethernet interface.
PROFINET, EtherNet/IP and EtherCAT can be easily set via parameters. Integrated safety functions enable safe operation of almost all motion sequences in automated production.
Also Read: Is AI Driving a New Enterprise Storage Boom? Hitachi Vantara Reports 45% Growth
Advanced Communication and Safety Functions
Apart from STO and SS1, the NORDAC ON series will also feature the motion monitoring function SLS, SMS or SSM for fail-safe control of the rotary movement. They can be integrated via PROFIsafe or FSoE into a fail-safe application within an existing Industrial Ethernet network. Stand-alone use is also possible. The safe digital inputs and outputs can be used to incorporate fail-safe peripheral components or functions. Emergency stop buttons, safety door switches, photoelectric sensors, etc. can thus be connected directly. Two safe single-channel digital inputs can be combined into one safe two-channel digital input, and two safe outputs can be combined into one safe two-channel output. The level of functional safety can thus be individually set with NORDAC FUSION as well.
Encoderless Control in Dynamic Applications
Another advantage is the encoderless control of NORDAC FUSION with the manufacturer’s highly efficient IE5+ synchronous motors (PMSM). Using the CFC open-loop injection method, the motor’s rotor position and speed can be captured without additional sensors. With this, NORD offers a robust, streamlined and economical drive solution that is also suitable for dynamic applications.
Highly Efficient IE5+ Motor Technology
NORD’s highly efficient IE5+ permanent magnet synchronous motors (PMSM) are characterized by a constantly high efficiency of up to 95% over a wide torque range. In partial load and partial speed ranges, they therefore achieve optimum energy consumption performance and allow for a reduction of variants for more streamlined production, logistics, warehousing and service processes.
Ideal for Demanding Environments
The NORDAC FUSION drive solution can be used up to a temperature of -30 °C. The combination of IE5+ synchronous motors and NORDAC ON PURE with NXD tupH is, for example, suitable for wash-down applications in the food sector. Ethernet on board, hybrid cables and daisy chain technology enable efficient and hygienic topologies that are more streamlined and easier to clean than conventional decentralized wiring.
