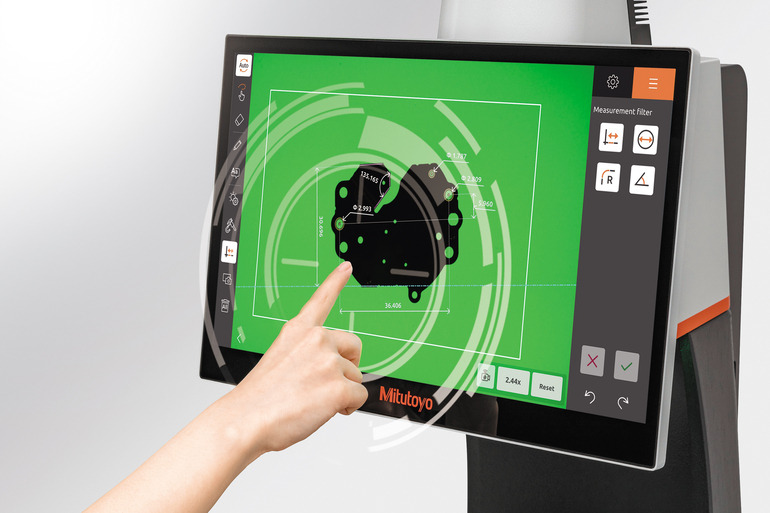

Mitutoyo America Corporation, a global leader in precision metrology, has introduced the QM-Fit Smart Vision System, a bold step forward in optical measurement technology. Featuring a wide field of view and intelligent part recognition, the system automatically initiates measurements by extracting shapes displayed on its 15.6-inch intuitive touchscreen. By merging streamlined operation with advanced automation, the QM-Fit delivers high-accuracy measurements with unmatched simplicity.
The QM-Fit is an all-in-one measurement system equipped with a 20-megapixel high-resolution color camera and a telecentric lens for precise, distortion-free imaging. Its integrated computer and intuitive touchscreen deliver fast, effortless results, while Automatic Element Detection instantly recognizes workpieces, aligns them, and performs measurement routines with minimal operator input.
Superior accuracy backed by NIST traceability:
-
- Results can be displayed in mm, µm, inch and µinch;
-
- Measurement accuracy ± 0.000394″, ±10 µm;
-
- Repeatability 2σ ≤ 4 μm;
-
- Accuracy guaranteed temperature range: 20±1 °C.
Next level image quality and lighting captures every detail instantly:
-
- 20-megapixel Color CMOS camera;
-
- Stage and 8 Quadrant Ring Illumination;
-
- Operator selectable digital magnifications of 1, 2, 5, 10, 20, 50 and 100x;
- Measurable range: 4.5″ x 3.0″ x 1.4”, 115 x 75 x 36 mm.
When accuracy matters, manufacturers rely on Mitutoyo for proven performance that drives quality forward. To schedule a demo, consultation, or request a quote, contact your local Mitutoyo representative or authorized distributor.
